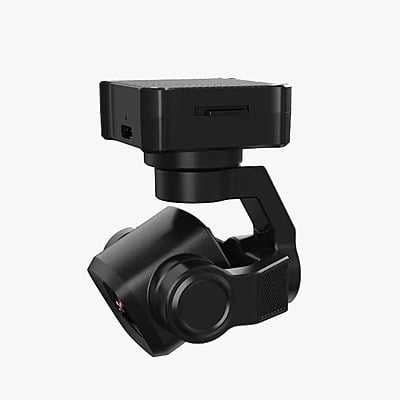

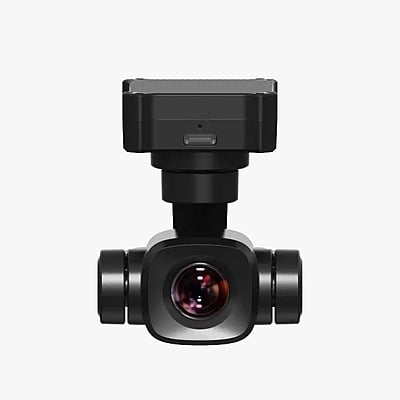

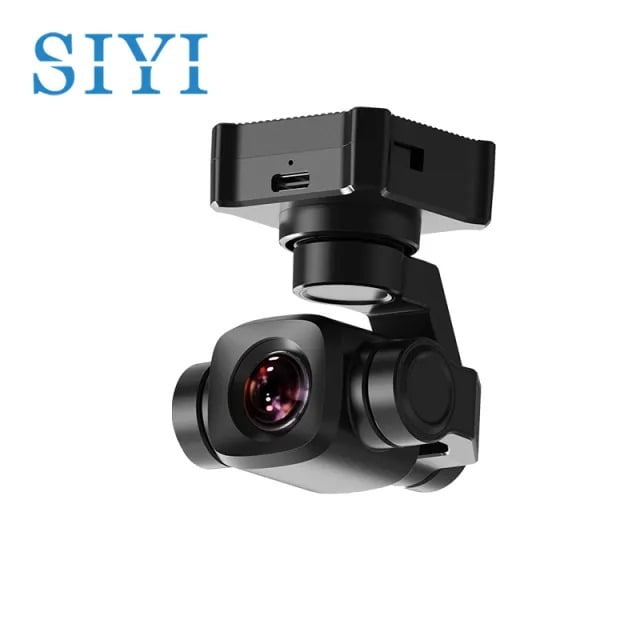

SIYI-A8 MINI GIMBLE CAMERA

Overall
Model: A8 mini

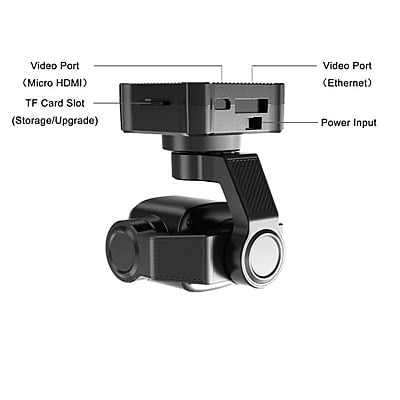

Video Output Port: Ethernet, HDMI, CVBS (AV)

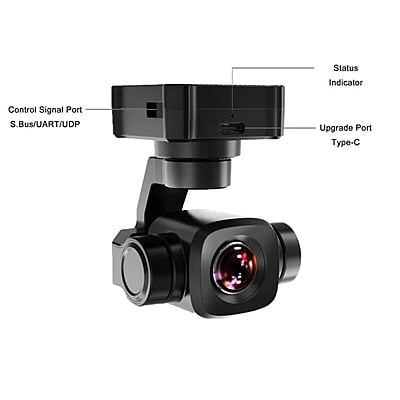

Control Signal Input Port: S.Bus, UART, Ethernet UDP
Control Signal Output Port: S.Bus
Working Voltage: 11 ~ 25.2 V *Early manufacturing lots of A8 mini may not support 25.2 V, please be careful
Power Consumption:
- Average 5 W
- Summit 12 W
Working Temperature: -10 ~ 50 ℃
Dimension: 55*55*70 mm
Weight: 95 g

Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -135° ~ +45°
Controllable Yaw Angle: -160° ~ +160°
Rotatable Roll Angle: -30° ~ +30°

Camera
Lens: Fixed Focal Length, 6X Digital
Equivalent Focal Length: 21 mm
Image Sensor: Sony 1/1.7-inch, 8 MP effective resolution
Aperture: F2.8
FOV:
- Diagonal 93°
- Horizontal 81°
TF Recording Resolution:
- 4K (4096 x 2160) @ 25 fps
- 2K (2560 x 1440) @ 30 fps
- 1080p (1920 x 1080) @ 30 fps
- 720p (1280 x 720) @ 30 fps
Video Storage Bitrate (H.265 Codec):
- 4K / 2K: 20 Mbps
- 1080p / 720p: 15 Mbps

Supported File System:
- FAT32
- ExFAT
Photography File Format: JPG
Video File Format: MP4
Supported MicroSD Cards: MicroSD Class10, max 512 GB
Still Photogaraphy Mode: Single
White Balance: Auto

Documents
A8 mini User Manual

Firmware
A8 mini Firmware Pack

Android App
SIYI FPV App
SIYI QGroundControl App

Windows Software
SIYI QGroundControl
SIYI PC Assistant
